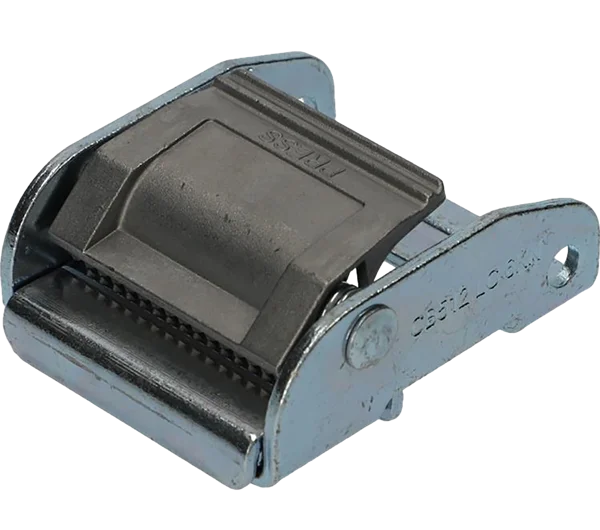

Tensys® · 50mm · 1200daN · CB · Cam Buckle

Tensys® · 50mm · 1200daN · CB · Cam Buckle

Larger cambuckle to retain hand applied tension in the webbing, often used on cargo nets or as a replacement for overcentre buckles on internal cargo straps.

• Breaking Force Minimum (BFmin) 1200daN (kg)
• Lashing Capacity (LC) 600daN (kg)
• Used with 50mm wide webbing straps
• Finish - Die cast
• Manufactured and stamped (LC 6.0kN) in accordance with BS EN 12195-2:2001

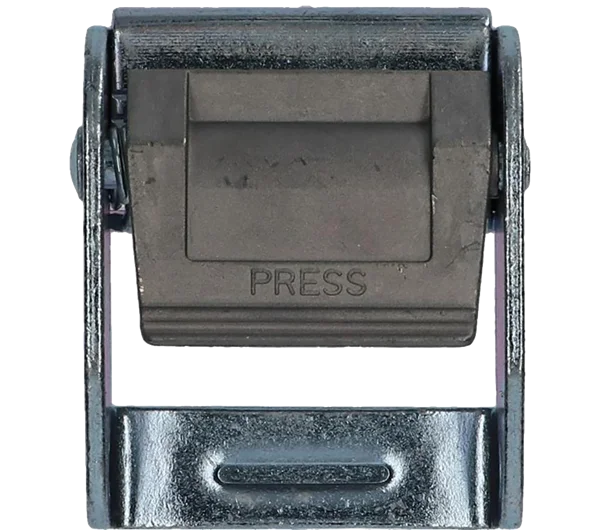

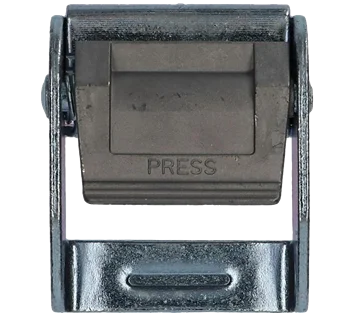

Cambuckles are simple, low cost, quick to use applying a positive lock to the hand tension applied. Simply push down the spring loaded catch by thumb to open the jaw and pull through the webbing to take up the slack. Because of the way the webbing routes 180deg around the jaw of the buckle, it is best to have the webbing permanently fitted through the buckle. they are not designed to be threaded regulalry with the plain end of the strap.If you need more tension simply pull the webbing tigher by hand and the catch will hold the tension. Push the catch down to release.
